The Invisible Bridge in Yacht Construction: What is the Shop Drawing Process?

“We frequently hear about the 'Shop Drawing' process in yacht projects, yet its details often remain a mystery. If a design already exists, what does this process add to the project, and why is it so critical for production?”

First, let's define what a shop drawing is in its simplest form: Shop drawings are technical illustrations that show, step-by-step, how a product will be manufactured and installed. In short, they are our roadmap.

To understand this process, we must also briefly touch upon what "design" is. Design is the first step that determines how a space will look, feel, and be utilized. It is the idea and the character of the project.

Why Shop Drawing When There Is Already a Design?

At this point, I ask myself the following question: I can already see the final result through the design; I can even manufacture based on 3D renders. So, what will shop drawing actually contribute?

The answer is quite clear.

While design expresses "what" will be made and how it will look, shop drawing demonstrates "how" it will be produced. In its simplest definition, a shop drawing is the technical translation of a design into production.

Often, by the time a project starts, the design phase is complete, and the lines are set. This is where the shop drawing process steps in, transforming those design lines into a clear, precise, and manufacturable structure ready for implementation. Design decisions evolve into exact measurements, specific materials, and production details, allowing the project to become truly "solved."

The Value of Transformation: From Concept to Reality

I view this process as the most valuable transformation zone between design and production. While making the conceptual lines manufacturable, I finalize all decisions from the very beginning. This ensures:

• A controlled production and assembly process.

• All teams look at the same detail in the exact same way.

• The project progresses in a perfectly coordinated manner.

Behind the "Invisible Walls": Engineering Integration

There is also a critical side of shop drawings that often remains hidden behind walls. In yacht projects, we must consider not just what is visible, but the systems that support that luxury.

Electrical lines, ventilation systems (HVAC), structural elements, insulation solutions, infrastructure equipment… This long list of engineering parameters must be integrated harmoniously with the design. At this point, shop drawing is not just about drafting; it is about finding the perfect balance between all these elements.

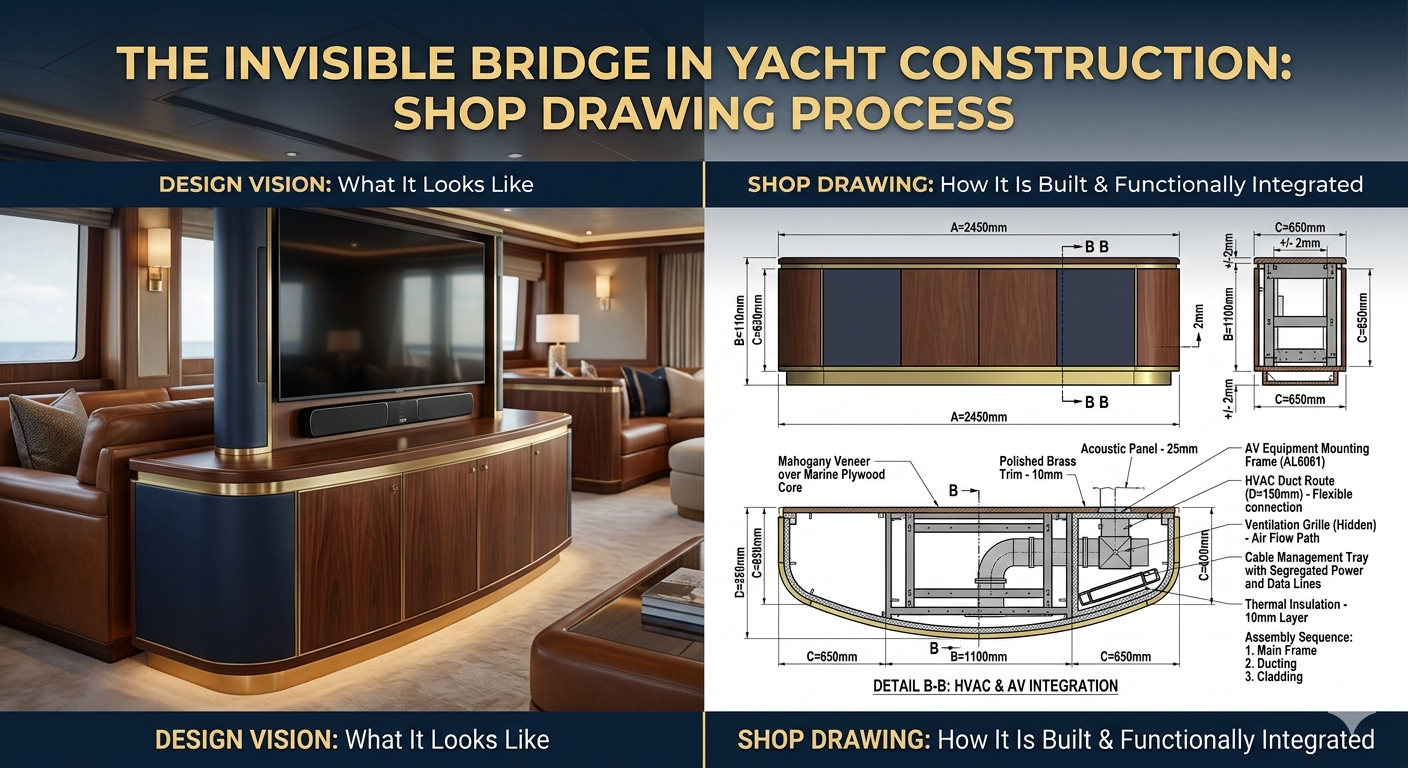

For example: A sleek and flawless console design can be completely compromised by a ventilation duct passing behind it. In such a case, simply changing the dimensions isn't enough; one must rethink everything from material thickness and internal volume usage to assembly details and design lines.

Making the Design "Work"

Design and engineering reveal their true value only when brought together correctly. Shop drawing is the intersection where these two distinct fields meet and become tangible.

For me, this process is more than just bringing a design to life; it is about integrating it correctly and making it functional.
